The type of contact you select is based on crimp preference along with the application. Both of the contact varieties are interchangeable within the connector. Meanwhile, the solid contacts are manufactured by way of a cold heading process of solid copper alloys.

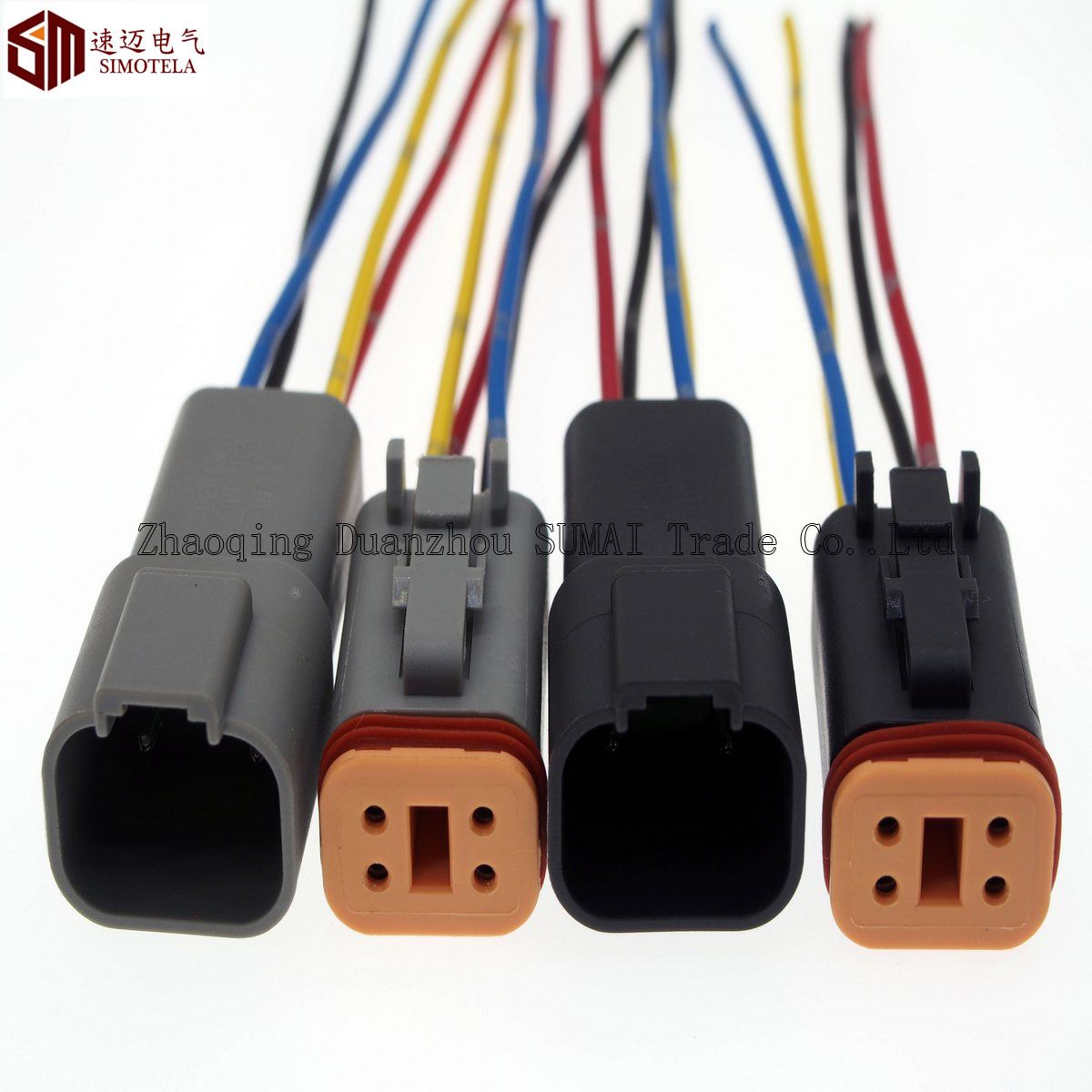

4 pin deutsch connector series#
According to Deutsch, the stamped and formed contacts are manufactured by way of a series of progressive dies. There are two different varieties of Deutsch contacts: stamped and formed as well as solid. The only deviation in connectors is the different gauge of wire required.Ĭonfused about automotive wiring in general? This article can help clear things up: Automotive Wiring 101: Basic Tips, Tricks & Tools for Wiring Your Vehicle The meat of the Deutsch connector system is what the company calls “commonality.” The idea here is that all of the wires are terminated by way of a single contact system. This ensures high levels of moisture resistance. Silicone gaskets are used at both rear wire interface as well as the front of the housings. The respective housings are made from a thermoplastic material that functions in a wide temperature range. Understanding Deutsch Connectorsīefore we get into the nitty gritty of assembly, consider the following:ĭeutsch connectors are designed for use in harsh environments, particularly in locations where you need to positively maintain the electrical connection. They’re physically smaller than a weatherpack and some might say they’re a better design, and folks may also argue they’re easier to assemble. One of the good ones is the Deutsch connector.
While weatherpacks work great (and are quite common), there are other options. Some like weatherpacks are common and easy to use. They’re all used for the same thing: Providing cable (or harness) to cable (harness) connections.
There are all sorts of different electrical and electronic connectors available in today’s marketplace.
